American Pneumatic
190 Paving Breaker
Overview

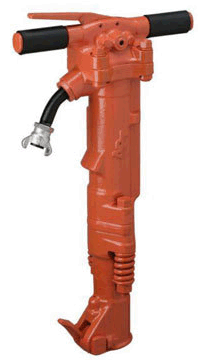

APT 190 (M190) is a “T” Handle 90lb Class Hammer
The 190 is a Heavy-Duty Hammer and has a time proven design.
This tool is Designed for Heavy Demolition Work. Due to its Weight and Extreme Power it is Not Recommended for Breaking Concrete that is Less Than 6” Thick. The APT 190 works very well for Solid Concrete Step Removal, Foundation Removal, Asphalt Cutting, Curb Removal, Road Work, Tent Stake Driving, Tamping, Form Pin Driving and all around Heavy Concrete Breaking.
Features & Applications
- Concrete Step Removal, Tent Stake Driving, etc.
- Extremely Durable and Reliable.
- Forged Four Bolt Backhead, with Rubber Grips.
- Built-in Automatic Oiler.
- Air Requirement: 75-80 cfm at 90 psi.
- 90 lb Class, Standard Weight 90 lb.
Model & part-number identification

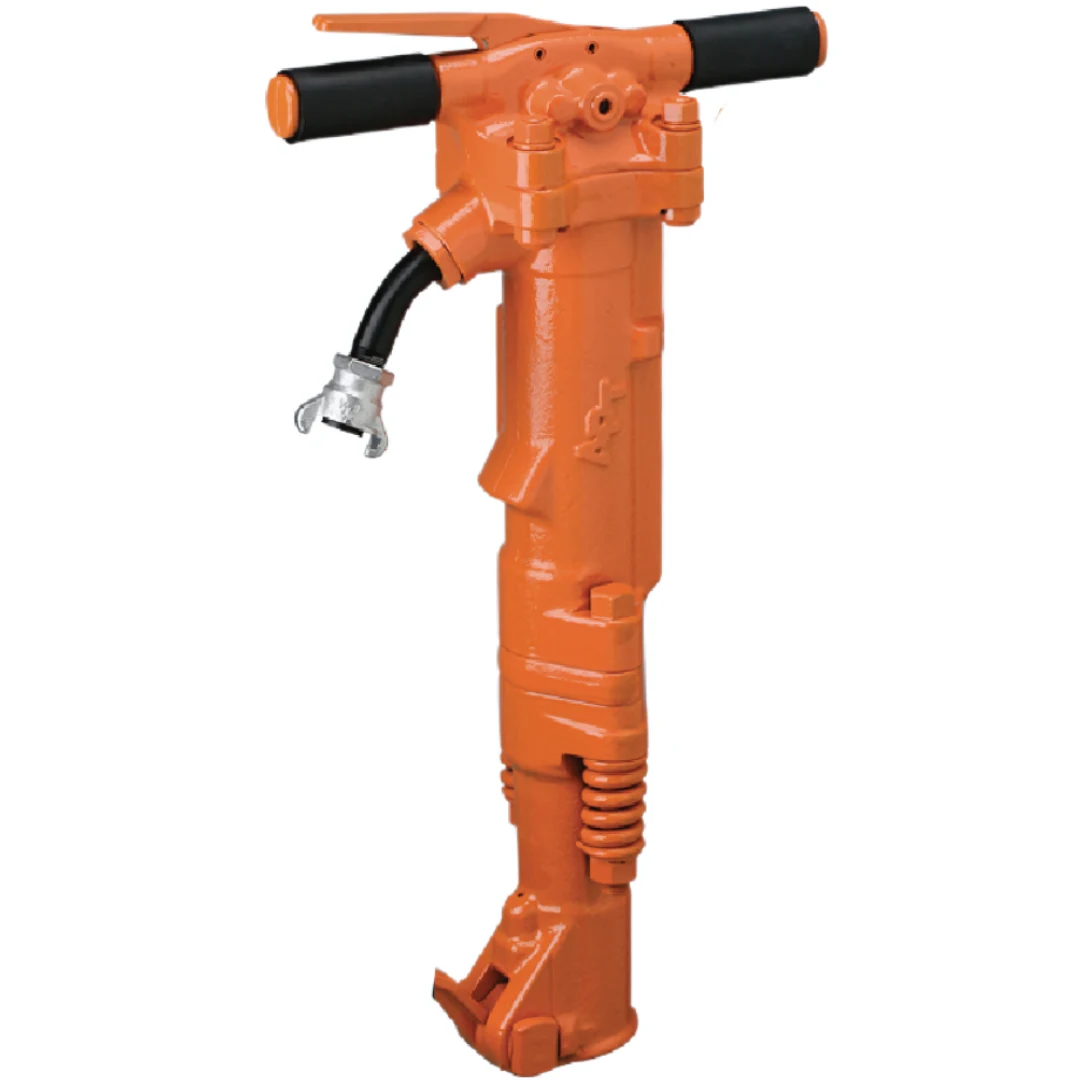

American Pneumatic APT 190 (M190) Paving Breaker
Old Part No. 5239 New Part No. 1280583304 (1-1/8” × 6”)
Old Part No. 5240, New Part No. 1280583305 (1-1/4” × 6”)
Complete tool: 190Tool part # 5239
1-1/8" x 6"
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Part No. | 5239 | 5240 |
|---|---|---|
| Chuck Size (inches) | 1-1/8x6 | 1-1/4x6 |
| Bore | 2-5/8 | 2-5/8 |
| Stroke | 6-1/8 | 6-1/8 |
| B.P.M. | 1350 | 1350 |
| CFM @ 90 PSI inlet pressure | 75-80 | 75-80 |
| Weight (lbs.) | 90 | 90 |
| Length (inches) | 29 | 29 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| 190 | 1-1/8" x 6" | 5239 | |
| 190 | 1-1/4" x 6" | 5240 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  1-1/8" × 6" shankPart Number & Quote |  1-1/4" × 6" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 118-ac | 125-ac |
 Bushing Tool | 8" | 16 Teeth | 118-bt | 125-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 118-cs | 125-cs |
 Digging Chisel | 16" | 3" Wide Blade | 118-dc | 125-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 118-sd | 125-sd |
 Frost Wedge | 17" | 2" Wide Blade | 118-fw | 125-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 118-grd(a) | 125-grd(a) |
| — | Socket diameter13/16" | 118-grd(b) | 125-grd(b) | |
| — | Socket diameter1" | 118-grd(c) | 125-grd(c) | |
| — | Socket diameter1-1/8" | 118-grd(d) | 125-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 118p-14 | 125p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118p-18 | 125p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c-14 | 125c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c-18 | 125c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c3-14 | 125c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c3-18 | 125c3-18 | |
 Pipe Driver | 11" | PIPE SIZE: 1" | 118-pd(a) | 125-pd(a) |
| 11" | Pipe size1-1/4" | 118-pd(b) | 125-pd(b) | |
| 11" | Pipe size1-1/2" | 118-pd(c) | 125-pd(c) | |
| 11" | Pipe size2" | 118-pd(d) | 125-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 118-rb | 125-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 118-sw | 125-sw |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 118-ds | 125-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | ||||
 Tamping Pad | — | 6" SQUARE | tps-6 | |
| — | 8" SQUARE | tps-8 | ||
| — | 7" ROUND | tpr-7 | ||
 Tent Stake Driver | — | 2" | tsd-200 | |
| — | 2-1/2" | tsd-250 | ||
 Sheathing Driver | — | 2" | tsh-200 | |
| — | 3" | tsh-300 | ||
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
