Atlas Copco
P60 Paving Breaker
Complete tool: P60Tool part # 8461022720
1-1/8" x 6"
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Description | TEX P60 |
|---|---|
| Part no | 8461022720 |
| Tool shank (inch) | 1-1/8 x 6 |
| Weight (lb) | 68 |
| Air consumption at 92 psi (cfm) | 76 |
| Length (inch) | 27 |
| Impact frequency (blows/min) | 1500 |
| Impact frequency (Hz) | 25 |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 16,8 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 109 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 97 |
| Description | TEX P60 |
|---|---|
| Part no | 8461022721 |
| Tool shank (inch) | 1-1/4 x 6 |
| Weight (lb) | 68 |
| Air consumption at 92 psi (cfm) | 76 |
| Length (inch) | 27 |
| Impact frequency (blows/min) | 1500 |
| Impact frequency (Hz) | 25 |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 16,8 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 109 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 97 |

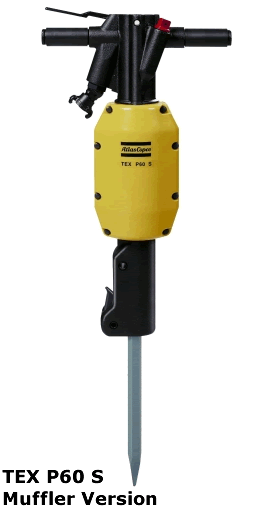

| Description | TEX P60S |
|---|---|
| Part no | 8461022722 |
| Tool shank (inch) | 1-1/8 x 6 |
| Weight (lb) | 72 |
| Air consumption at 92 psi (cfm) | 76 |
| Length (inch) | 27 |
| Impact frequency (blows/min) | 1500 |
| Impact frequency (Hz) | 25 |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 16,8 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 109 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 97 |
| Description | TEX P60S |
|---|---|
| Part no | 8461022723 |
| Tool shank (inch) | 1-1/4 x 6 |
| Weight (lb) | 72 |
| Air consumption at 92 psi (cfm) | 76 |
| Length (inch) | 27 |
| Impact frequency (blows/min) | 1500 |
| Impact frequency (Hz) | 25 |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 16,8 |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | 109 |
| Sound pressure level (ISO 11203) (Lp, r = 1m) | 97 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| P60 | 1-1/8" x 6" | 8461022720 | |
| P60 | 1-1/4" x 6" | 8461022721 | |
| P60 Silenced | 1-1/8" x 6" | 8461022722 | |
| P60 Silenced | 1-1/4" x 6" | 8461022723 |
Accessory Tools
Match the shank, collar and size to your tool. Each button adds that individual accessory to your quote list.
| Tool | Length under collar (in.) | Details |  1-1/8" × 6" shankPart Number & Quote |  1-1/4" × 6" shankPart Number & Quote |
|---|---|---|---|---|
 Asphalt Cutter | 11" | 5" Wide Blade | 118-ac | 125-ac |
 Bushing Tool | 8" | 16 Teeth | 118-bt | 125-bt |
 Clay Spade | 16" | 5-1/2" Wide Blade | 118-cs | 125-cs |
 Digging Chisel | 16" | 3" Wide Blade | 118-dc | 125-dc |
 Pin Driver | 8" | Socket: 3/8" Deep x 1-3/4" Dia. | 118-sd | 125-sd |
 Frost Wedge | 17" | 2" Wide Blade | 118-fw | 125-fw |
 Ground Rod Driver | — | SOCKET DIAMETER: 11/16" | 118-grd(a) | 125-grd(a) |
| — | Socket diameter13/16" | 118-grd(b) | 125-grd(b) | |
| — | Socket diameter1" | 118-grd(c) | 125-grd(c) | |
| — | Socket diameter1-1/8" | 118-grd(d) | 125-grd(d) | |
 Moil Point | 14" | LONGER LENGTHS AVAILABLE | 118p-14 | 125p-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118p-18 | 125p-18 | |
 Narrow Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c-14 | 125c-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c-18 | 125c-18 | |
 Wide Chisel | 14" | LONGER LENGTHS AVAILABLE | 118c3-14 | 125c3-14 |
| 18" | LONGER LENGTHS AVAILABLE | 118c3-18 | 125c3-18 | |
 Pipe Driver | 11" | PIPE SIZE: 1" | 118-pd(a) | 125-pd(a) |
| 11" | Pipe size1-1/4" | 118-pd(b) | 125-pd(b) | |
| 11" | Pipe size1-1/2" | 118-pd(c) | 125-pd(c) | |
| 11" | Pipe size2" | 118-pd(d) | 125-pd(d) | |
 Rock Buster | 13" | Taper Range: 1-1/4" to 2-1/4" Dia | 118-rb | 125-rb |
 Splitting Wedge | 17-1/2" | Drill Hole Size 2 x 12" Deep | 118-sw | 125-sw |
 Detachable Shank | 7-3/4" | FOR USE WITH: TAMPER PAD TENT STAKE DRIVER SHEATHING DRIVER | 118-ds | 125-ds |
| Separate attachments — use with a detachable shank. Confirm the holder and fit. | ||||
 Tamping Pad | — | 6" SQUARE | tps-6 | |
| — | 8" SQUARE | tps-8 | ||
| — | 7" ROUND | tpr-7 | ||
 Tent Stake Driver | — | 2" | tsd-200 | |
| — | 2-1/2" | tsd-250 | ||
 Sheathing Driver | — | 2" | tsh-200 | |
| — | 3" | tsh-300 | ||
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
