Chicago Pneumatic CP 0611

View larger image

CP 0611 parts drawing preview (first PDF page)Parts drawing ↗
Request Quote Parts ↗

Safety manual (PDF) ↗

Chicago Pneumatic

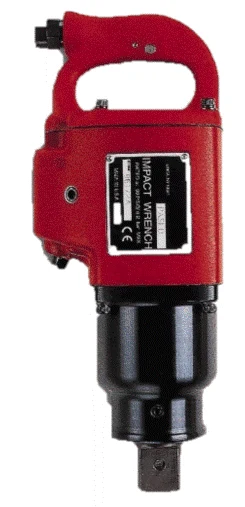

CP 0611 Impact Wrench

Your BEST price is just a call away.

Request a Quote

Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.

1-800-241-9669

Need help with a model or part? Talk to Mining Auger & Tool Works.

Technical Specs

CP 0611 — specifications
Part numberT022580
ModelCP0611 GASED
Joint type: softJoint type: soft
Joint type: hardJoint type: hard
Handle typeD O T
Square drive1"
Working Torque Range (fwd)1220-2440 Nm900-1800
Maximum Torque (fwd)3790 Nm2800 ft.lbs
Maximum Torque (reverse)3790 Nm2800 ft.lbs
Blows per minute1020
Weight10.2 kg22.5 lb
Length318 mm12.52"
Average air consumption22.6 l/s48 cfm
Air inlet thread size NPTF in.1/2 NPTF in.
Noise level97 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)10.9 m/s²
Vibration α (ISO-28927-2)16.1 m/s²
Vibration K (ISO-28927-2)4.5 m/s²
Socket retainerHole
Clutch type2-Jaw
CP 0611 — specifications
Part numberT022581
ModelCP0611 GASEL
Joint type: softJoint type: soft
Joint type: hardJoint type: hard
Handle typeD O T
Square drive1"
Working Torque Range (fwd)1220-2440 Nm900-1800
Maximum Torque (fwd)3790 Nm2800 ft.lbs
Maximum Torque (reverse)3790 Nm2800 ft.lbs
Blows per minute1020
Weight10.2 kg22.5 lb
Length318 mm12.52"
Average air consumption22.6 l/s48 cfm
Air inlet thread size NPTF in.1/2 NPTF in.
Noise level97 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)10.9 m/s²
Vibration α (ISO-28927-2)16.1 m/s²
Vibration K (ISO-28927-2)4.5 m/s²
Socket retainer#5 spline
Clutch type2-Jaw
CP 0611 — specifications
Part numberT022578
ModelCP0611 PASED
Joint type: softJoint type: soft
Joint type: hardJoint type: hard
Handle typeD I T
Square drive1"
Working Torque Range (fwd)1220-2440 Nm900-1800
Maximum Torque (fwd)3790 Nm2800 ft.lbs
Maximum Torque (reverse)3790 Nm2800 ft.lbs
Blows per minute1020
Weight10.2 kg22.5 lb
Length318 mm12.52"
Average air consumption22.6 l/s48 cfm
Air inlet thread size NPTF in.1/2 NPTF in.
Noise level97 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)10.9 m/s²
Vibration α (ISO-28927-2)16.1 m/s²
Vibration K (ISO-28927-2)4.5 m/s²
Socket retainerHole
Clutch type2-Jaw
CP 0611 — specifications
Part numberT022579
ModelCP0611 PASEL
Joint type: softJoint type: soft
Joint type: hardJoint type: hard
Handle typeD I T
Square drive1"
Working Torque Range (fwd)1220-2440 Nm900-1800
Maximum Torque (fwd)3790 Nm2800 ft.lbs
Maximum Torque (reverse)3790 Nm2800 ft.lbs
Blows per minute1020
Weight10.2 kg22.5 lb
Length318 mm12.52"
Average air consumption22.6 l/s48 cfm
Air inlet thread size NPTF in.1/2 NPTF in.
Noise level97 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)10.9 m/s²
Vibration α (ISO-28927-2)16.1 m/s²
Vibration K (ISO-28927-2)4.5 m/s²
Socket retainer#5 spline
Clutch type2-Jaw
CP 0611 — specifications
Part numberT022582
ModelCP0611 HAZED
Joint type: softJoint type: soft
Joint type: hardJoint type: hard
Handle typeD I T
Square drive1"
Working Torque Range (fwd)1220-2440 Nm900-1800
Maximum Torque (fwd)3790 Nm2800 ft.lbs
Maximum Torque (reverse)3790 Nm2800 ft.lbs
Blows per minute1020
Weight10.2 kg22.5 lb
Length318 mm12.52"
Average air consumption22.6 l/s48 cfm
Air inlet thread size NPTF in.1/2 NPTF in.
Noise level97 db(A)
Sound Power107 db(A)
Vibration (ISO-8662-7)10.9 m/s²
Vibration α (ISO-28927-2)16.1 m/s²
Vibration K (ISO-28927-2)4.5 m/s²
Socket retainerHole
Clutch type2-Jaw
