Airrex Quality Tools

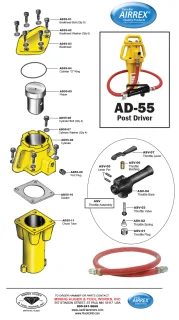

Model: AD-55
Post Driver
The Airrex AD-55 Pneumatic Driver is an excellent choice for setting Steel Fence Posts, Sign Posts and other similar driving activities.
This Hard Hitting, Efficient Tool like all Airrex Quality Tools is really built to last.
This Value Package includes the Driver, Whip Hose Assembly, and Throttle Valve with Coupler.
| Model | Product Detail | Part Number |  |
| AD-55 | Medium Duty Post Driver 3-7/8" I.D. Master Chuck |
070609 |
| Item | Part Number | Specifications |
| 1 | 070609 | 3-1/2" (88.9 mm) I.D. Chuck Adapter |
| 2 | 070610 | 3" (76.2 mm) I.D. Chuck Adapter |
| 3 | 070611 | 2-1/2" (63.5 mm) I.D. Chuck Adapter |
| 4 | 070612 | 2" (50.8 mm) I.D. Chuck Adapter |
| 5 | 070613 | 1-1/2" (38.1 mm) I.D. Chuck Adapter |
| 6 | 070614 | 1" (25.4 mm) I.D. Chuck Adapter |
| 7 | 070617 | Channel Post Chuck Adapter - 1.2 to 1.5 lbs/ft Posts |
| 8 | 070618 | Channel Post Chuck Adapter - 2 to 2.75 lbs/ft Posts |
| 9 | 070619 | Channel Post Chuck Adapter - 3 to 4 lbs/ft Posts |
| 10 | 070615 | 2" (50.8mm) Heavy Channel Post Chuck Adapter (not shown) |
Important! If the post you intend to drive is tubular in construction and the inside dimension is larger than 2.5", you will need to use a drive cap. Please call us for assistance in determining your needs.
| Item | Description |
| Top Cover: | Ductile iron casting, high in strength and ductility has a 1" (25.4 mm) diameter handle designed into the cover for easy handling and carrying. O-Ring sealed. |
| Body: | Ductile iron casting, with excellent wear resistant characteristics. The air inlet is cast into the body and tapped with 3/4" NPT female threaded ports, along with 1" (25.4 mm) diameter ergonomically designed side handles for easy handling and carrying. Chuck bolts pass thru the lower body flange into tapped holes in the chuck mounting plate allowing special chucks to be made in a wide variety of shapes and sizes. |
| Piston: | Alloy steel heat-treated with a ground surface with hard chrome plate. Designed with 2 round valve ports to give better lubrication and load distribution to the valve ring while running. |
| Master Chuck and Chuck Adapters: | The 3-7/8" (98.4 mm) I.D. master chuck is an all-welded, reinforced steel and tubing construction. The chuck is equipped with extra long chuck adapter attachment lugs. Standard chuck adapters are available in the following sizes: 1" (25.4 mm) I.D., 1 1/2" (38.1 mm) I.D., 2" (50.8 mm) I.D., 2 1/2" ( 63.5 mm) I.D., 3" (76.2 mm) I.D., 3 1/2" (88.9 mm) I.D. and three channel post adapters for 1.2 to 1.5 lbs/ft, 2 to 2.75 lbs/ft, and 3 to 4 lbs/ft posts. |
| Weight: | 56 lbs (25.4 kg) |
| Fasteners: | S.A.E. grade-5 bolts with belleville lock washers. All fasteners are plated. |
| Air Consumption: | 42 CFM (1.19 m3/min) @ 90 PSI (6.4 kg/cm2) |
| Blows Rate: | 1700 BPM |
Coming soon! Please call for accessory tools available for this tool.
Coming soon! Please call for safety data for this tool.
Coming soon! Please call for additional pictures available for this tool.
