Chicago Pneumatic

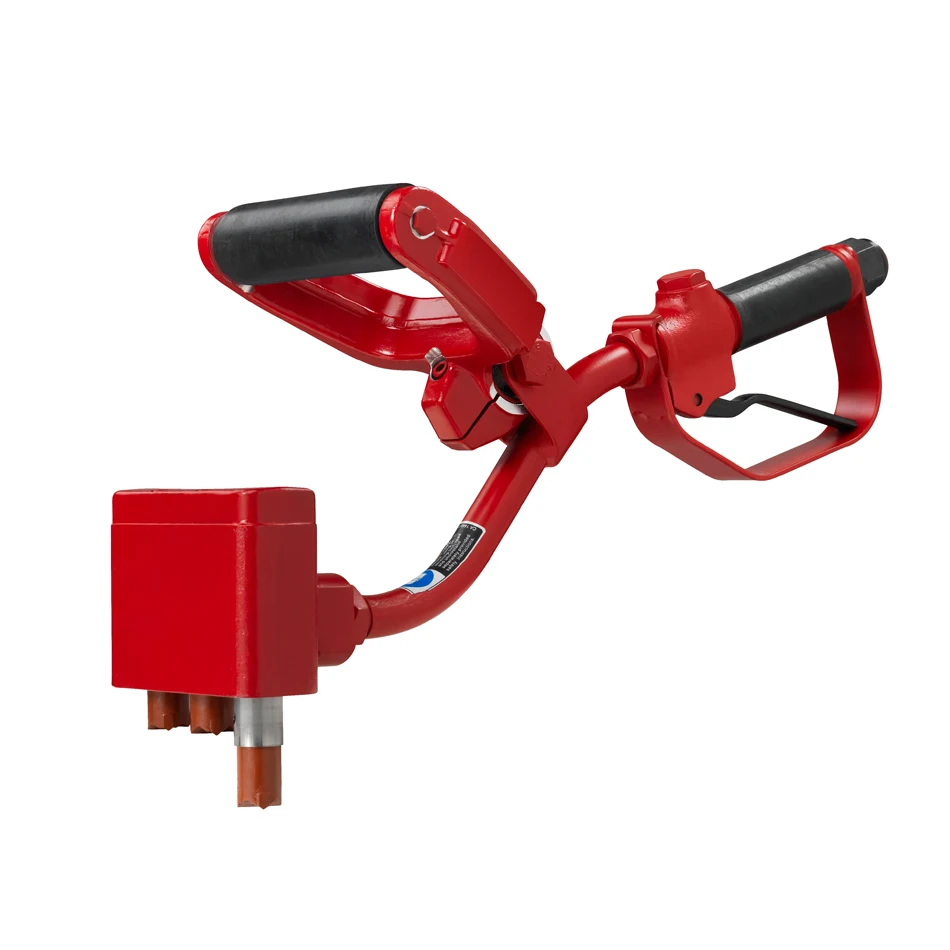

CP 0006 SVR Scabbler
The CP 0006, CP0006 SVR, and CP 0066 scabblers are ideal tools for cleaning and roughening concrete and construction joints. They can also be used to produce ornamental or contrasting finishes on road and building structures. With their different handle designs, the CP 0006 is more suitable when working on large surface areas whereas the CP 0066 is mainly used for hard-to-reach areas.
- Lightweight, compact tool with contoured grip handle - reduces operator fatigue; increases output
- Tungsten carbide-tipped pistons - last longer; are easily replaced
- Back head grip - gives in-line thrust
- Chamfered cylinder block - increases visibility of the work piece permitting close-up operation in corners
Complete tool: CP 0006 SVRTool part # 8900004001
CP 0006 SVR Scabbler
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Description | CP 0006 SVR Scabbler |
|---|---|
| Part no | 8900004001 |
| Weight (lb) | 14,3 |
| Length (inch) | 20 |
| Width (inch) | --- |
| Height (inch) | --- |
| Air consumption (cfm) | 28 |
| Air Inlet | 1/2" NPTF |
| Stroke (inch) | --- |
| No. and type of pistons | Three 4-point carbide tipped pistons |
| Impact frequency (blows/min) | 3000 |
| Piston ref. no | --- |
| Comments | --- |
| Vibration level 3 axes (ISO 20643) (m/sec²) | 7,1 |
| Sound pressure level (2000/14/EC) dB(A) | 92 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| CP 0006 SVR | CP 0006 SVR Scabbler | 8900004001 |
