Chicago Pneumatic

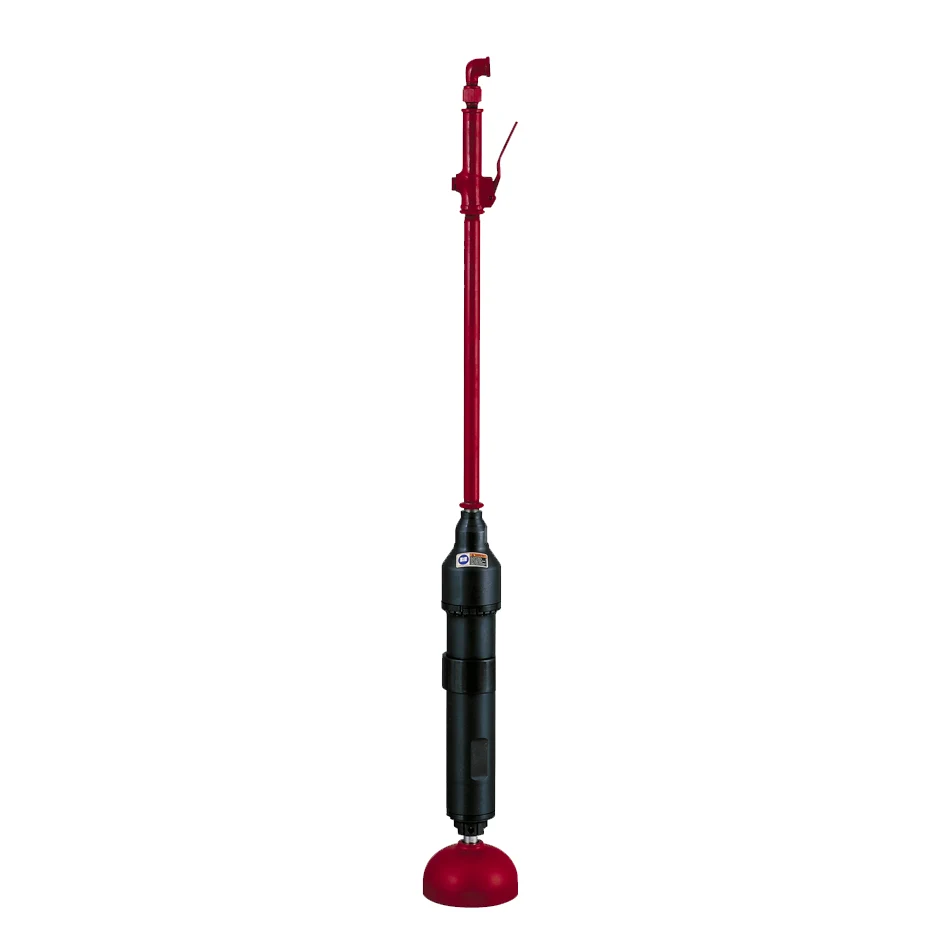

CP 0004 Backfill Tamper
The CP 0003 and CP 0004 are designed to effectively compact soil around foundations and other structures, and for compacting backfill in trenches. Unlike the CP backfill tampers, many competitors on the market were designed for sand ramming only and thus lack the full power necessary for contracting operations. The CP 0003 is designed to handle light-to-medium applications; the CP 0004 is the ideal tool for heavier jobs.
- Maximum power - slow, powerful blows efficiently and quickly compact all types of backfill, including clay and soils containing high percentages of finely crushed or powered material
- Heat-treated cylinder and chrome plated piston - significantly extend tool life
- Adjustable packing-maintains a positive air seal
- Butt held with clamp screw - for quick, easy replacement
- Exhaust deflector - directs air, moisture and oil away from operator
- Integral oiler - continuously lubricates tool during operation
- Well balanced, smooth operation tool - easily guided by one person
Complete tool: CP 0004Tool part # T022292
Backfill Tamper
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Model | CP 0004 |
|---|---|
| Part No | T022292 |
| Weight w/o accessory (lbs) | 42,0 |
| Length w/o accessory (inch) | 50 |
| Stroke (inch) | 6 |
| Air consumption (cfm) | 28 |
| Air Inlet (inch) | 1/2 NPT |
| Impact frequency (blows/min) | 780 |
| Valve Type | Ring valve |
| Muffler Ref. No | P 125807 |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| CP 0004 | Backfill Tamper | T022292 |
