Chicago Pneumatic

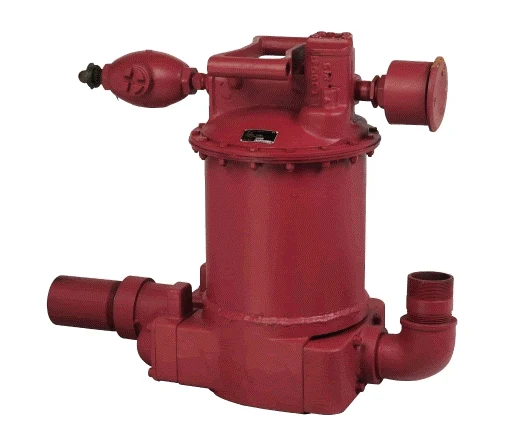

CP 0010 Pump
The CP 0010 and CP 0020 submersible pumps are designed with the performance and durability which make them ideal for removing water from trenches, ditches, manholes, industrial sumps and excavations. Will pump down to within 7/8' (22 mm) from base.
- Single-stage centrifugal units driven by powerful vane motors
- Double seals protect bearings and motor from water and mud
- Integral oiler provides continuous lubrication
- Integral strainer, air inlet valve
- Bronze impeller
- Cast-iron housing
Complete tool: CP 0010Tool part # T022224
Submersible Pump
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Description | CP 0010 Water Submersible Pump |
|---|---|
| Part number | T022224 |
| Weight | 33 lb |
| Water Outlet | 2" |
| Min. Water Depth | 7/8" |
| Air Consumption | 100 cfm |
| Air Inlet | 3/4" NPT |
| Overall Diameter | 8-1/4 x 9 |
| Performance | 250-125 gal/min @ 90 ft |
| Air Exhaust Pipe | 1" BSP male (R137578) |
| Max Head | 100 ft |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| CP 0010 | Submersible Pump | T022224 |
