Ingersoll Rand
A Series Chipping Hammer
Renowned for its valve life and handle durability, this classic tool is widely used throughout industry and construction. It is ideal for light demolition work, bridge decking, concrete surface preparation, metal removal, form stripping, and many other applications.
- Grooved barrel, lock spring retainer
- Swan neck handle
- Outside trigger
- Time tested valve durability
- Replaceable piston
- Long nozzle for extra life
- Threaded barrel and rubber buffered retainer
Available in 1", 2", 3" and 4" stroke versions.
Choose your complete tool
8 models. + Quote adds one complete tool; adjust quantities in your quote list.

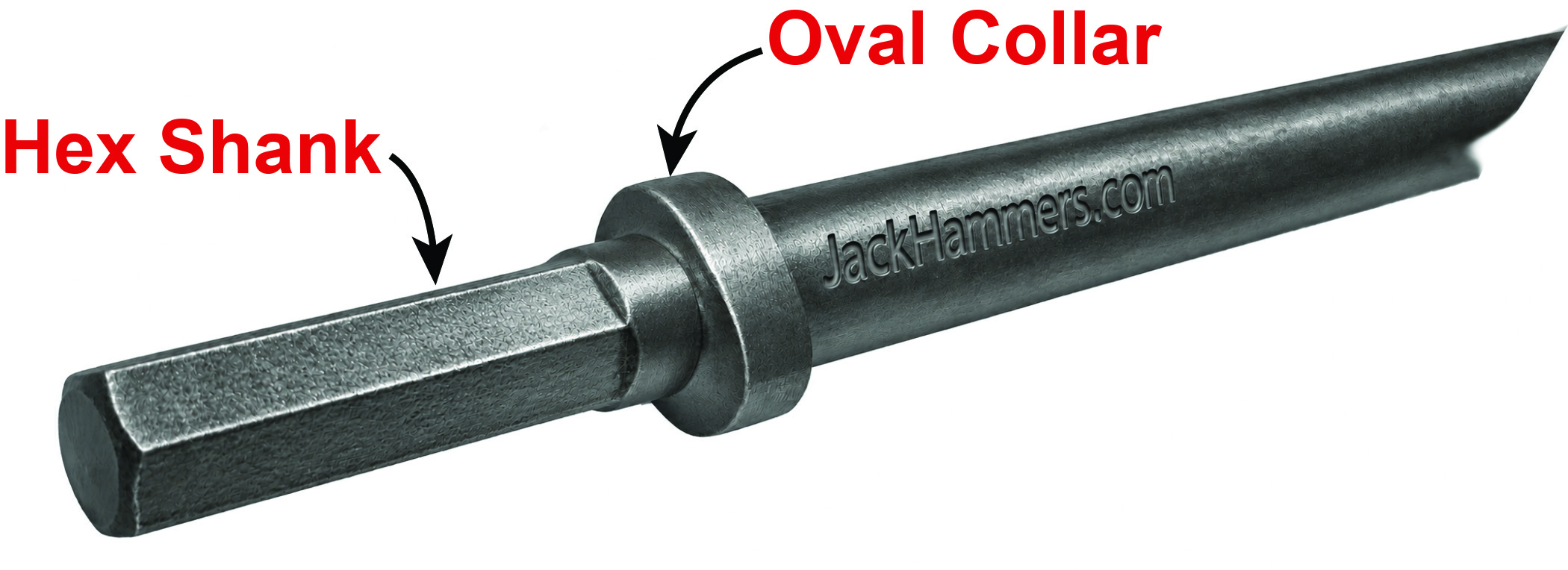

.580 Hex Shank x Oval Collar
| Model / stroke | Part number | Quote |
|---|---|---|
| 1A1SA1" stroke | 1A1SA | |
| 2A1SA2" stroke | 2A1SA | |
| 3A1SA3" stroke | 3A1SA | |
| 4A1SA4" stroke | 4A1SA |

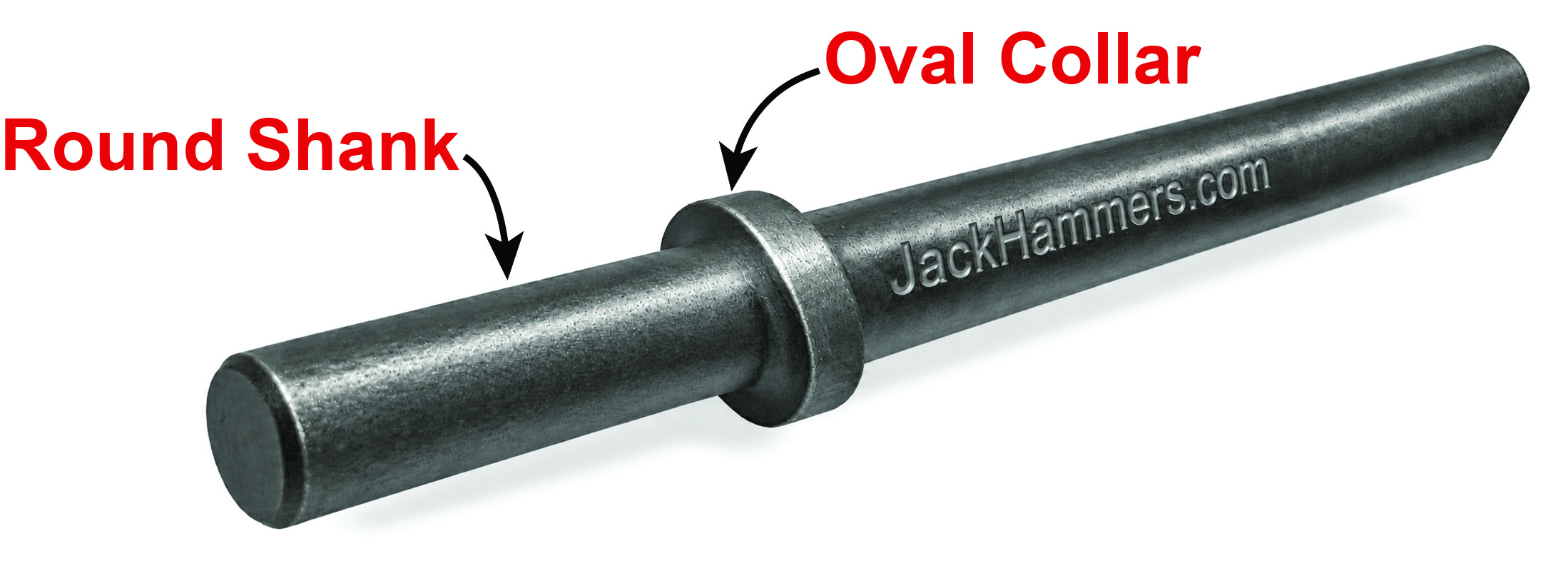

.680 Round Shank x Oval Collar
| Model / stroke | Part number | Quote |
|---|---|---|
| 1A2SA1" stroke | 1A2SA | |
| 2A2SA2" stroke | 2A2SA | |
| 3A2SA3" stroke | 3A2SA | |
| 4A2SA4" stroke | 4A2SA |
Technical Specs
.580 Hex models
| Model - P/N: | 1A1SA | 2A1SA |
|---|---|---|
| Chuck Size (inches) | .580 Hex | .580 Hex |
| Retainer Type | Lock-spring (plain arrow) | Lock-spring (plain arrow) |
| Blows/Min. [/sec.] | 2500 [42] | 2300 [38] |
| Stroke (inches) | 1 | 2 |
| Bore (inches) | 1-1/8 | 1-1/8 |
| Air Consumption @ Load cfm (L/min) | 28 (793) | 28 (793) |
| Air Inlet NPT (inch) | 3/8 | 3/8 |
| Min Hose Size I.D. (inch) | 1/2 | 1/2 |
| Weight (lbs.) | 14.8 | 15.1 |
| Length w/o accy (inches) | 15.5 | 16 |
.580 Hex models
| Model - P/N: | 3A1SA | 4A1SA |
|---|---|---|
| Chuck Size (inches) | .580 Hex | .580 Hex |
| Retainer Type | Lock-spring (plain arrow) | Lock-spring (plain arrow) |
| Blows/Min. [/sec.] | 1725 [29] | 1480 [27] |
| Stroke (inches) | 3 | 4 |
| Bore (inches) | 1-1/8 | 1-1/8 |
| Air Consumption @ Load cfm (L/min) | 29 (821) | 29 (821) |
| Air Inlet NPT (inch) | 3/8 | 3/8 |
| Min Hose Size I.D. (inch) | 1/2 | 1/2 |
| Weight (lbs.) | 15.6 | 17.5 |
| Length w/o accy (inches) | 17.9 | 18.9 |
.680 Round models
| Model - P/N: | 1A2SA | 2A2SA |
|---|---|---|
| Chuck Size (inches) | .680 Rnd | .680 Rnd |
| Retainer Type | Lock-spring (plain arrow) | Lock-spring (plain arrow) |
| Blows/Min. [/sec.] | 2500 [42] | 2300 [38] |
| Stroke (inches) | 1 | 2 |
| Bore (inches) | 1-1/8 | 1-1/8 |
| Air Consumption @ Load cfm (L/min) | 28 (793) | 28 (793) |
| Air Inlet NPT (inch) | 3/8 | 3/8 |
| Min Hose Size I.D. (inch) | 1/2 | 1/2 |
| Weight (lbs.) | 14.8 | 15.1 |
| Length w/o accy (inches) | 15.5 | 16 |
.680 Round models
| Model - P/N: | 3A2SA | 4A2SA |
|---|---|---|
| Chuck Size (inches) | .680 Rnd | .680 Rnd |
| Retainer Type | Lock-spring (plain arrow) | Lock-spring (plain arrow) |
| Blows/Min. [/sec.] | 1725 [29] | 1480 [27] |
| Stroke (inches) | 3 | 4 |
| Bore (inches) | 1-1/8 | 1-1/8 |
| Air Consumption @ Load cfm (L/min) | 29 (821) | 29 (821) |
| Air Inlet NPT (inch) | 3/8 | 3/8 |
| Min Hose Size I.D. (inch) | 1/2 | 1/2 |
| Weight (lbs.) | 15.6 | 17.5 |
| Length w/o accy (inches) | 17.9 | 18.9 |
Accessory Tools

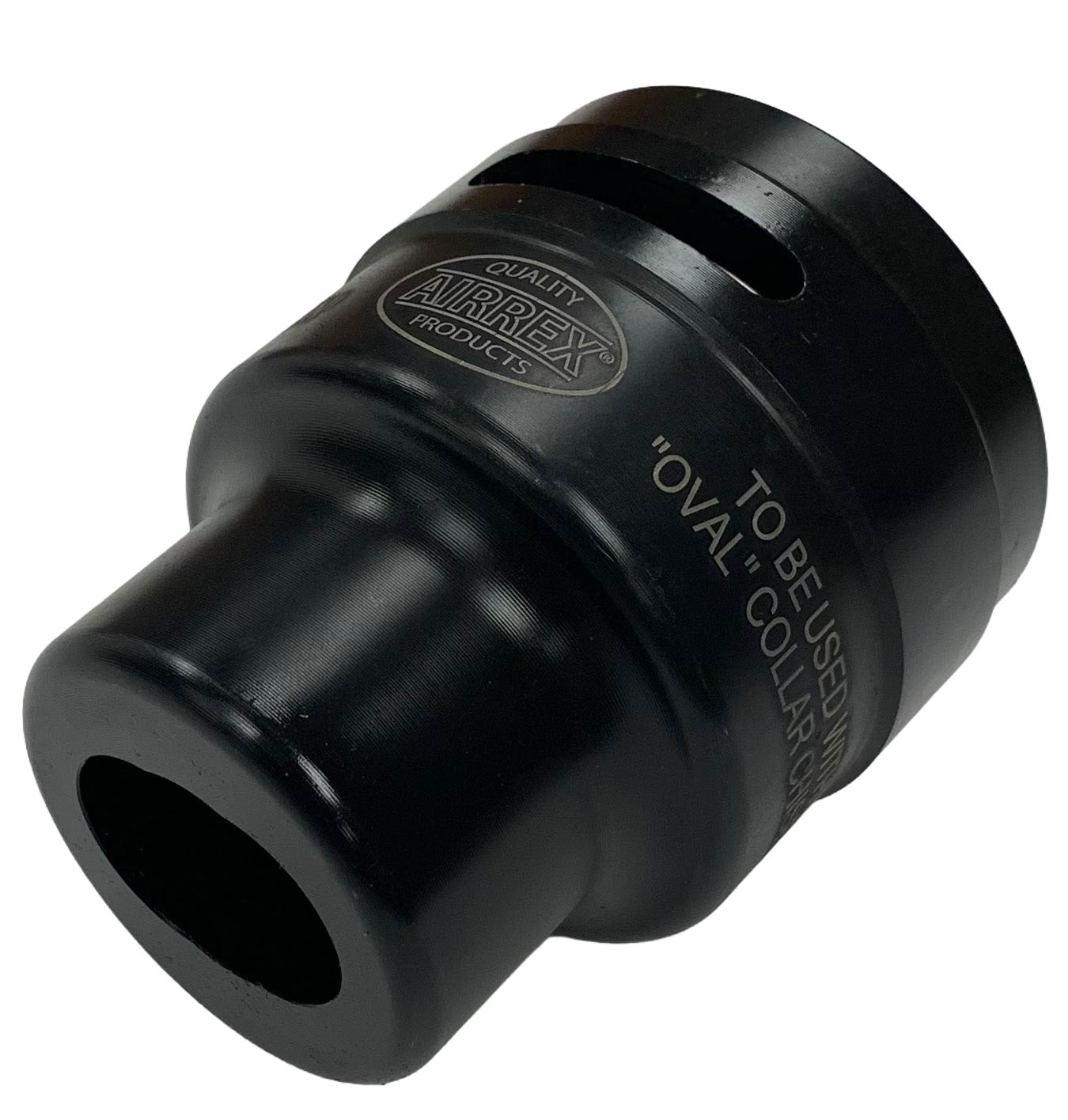

Match the collar and shank. Standard retainers use oval collars; deluxe quick-change ball retainers use round collars. These connections are not interchangeable.
Oval collar bits
For standard retainers.
| Length under collar (in.) |  OCHS.580 Hex |  OCRS.680 Round |
|---|---|---|

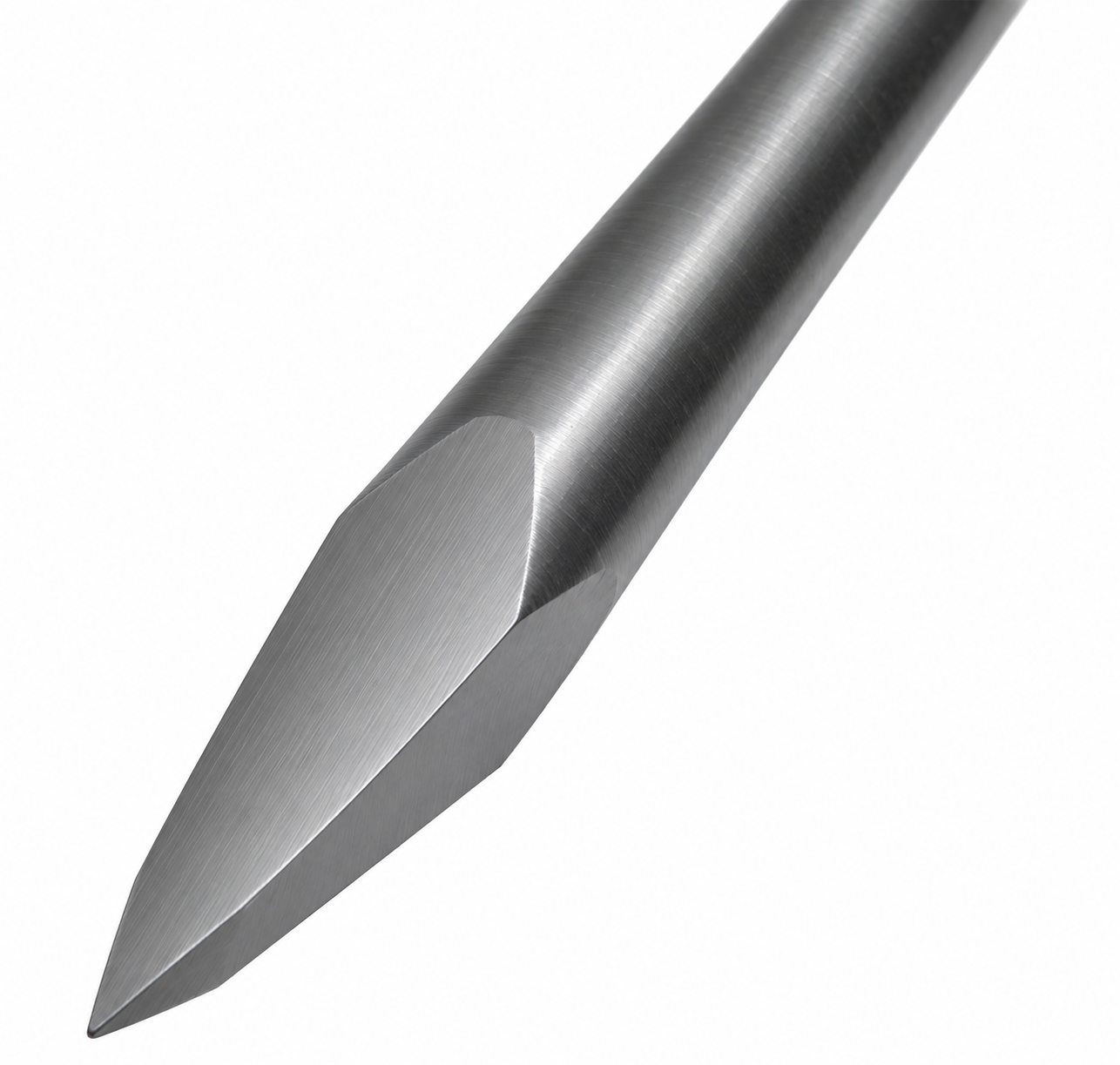

 Moil Point | ||
| 12" | ochs-12p | ocrs-12p |
| 18" | ochs-18p | ocrs-18p |
| 24" | ochs-24p | ocrs-24p |

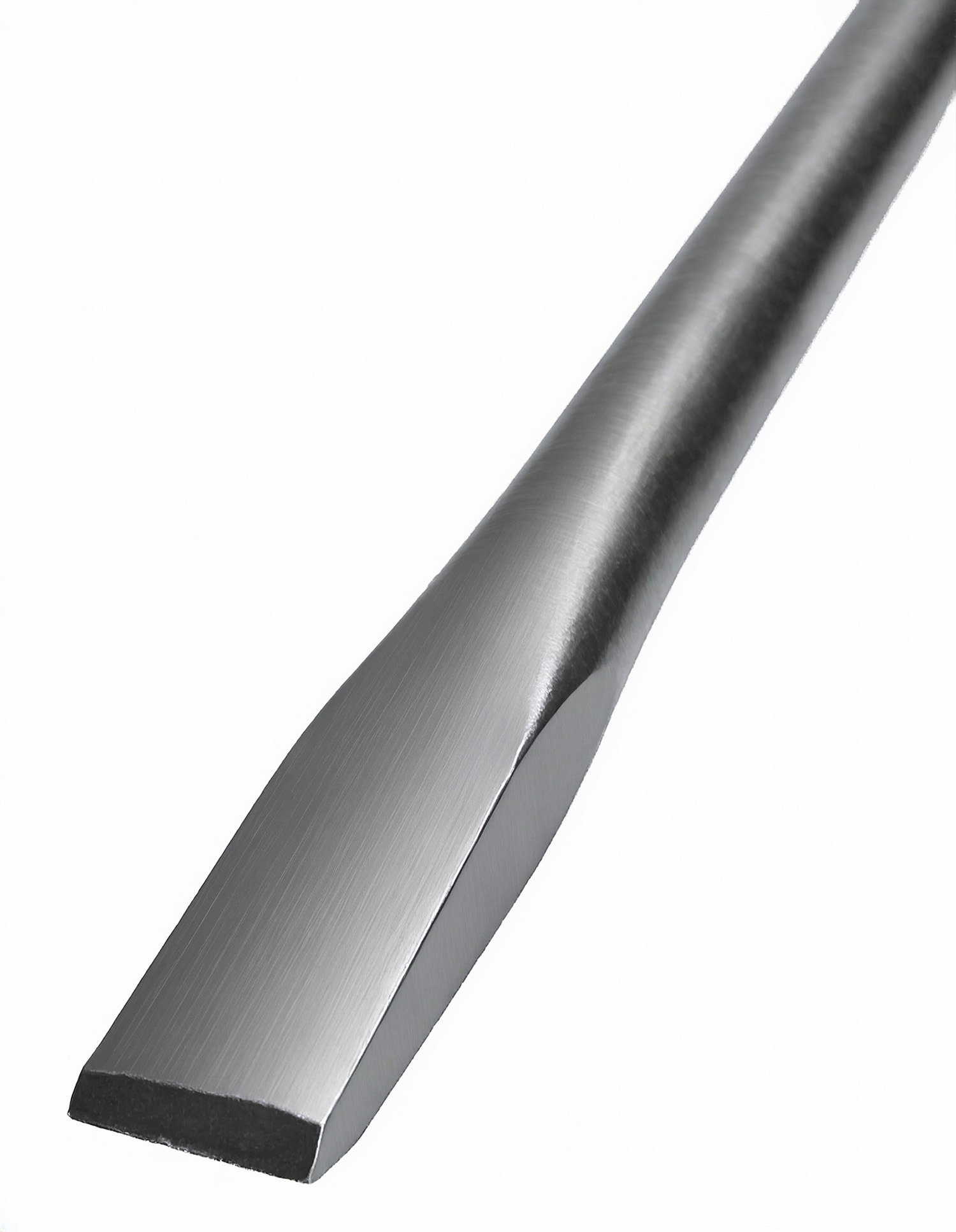

 Narrow Chisel | ||
| 12" | ochs-12c | ocrs-12c |
| 18" | ochs-18c | ocrs-18c |
| 24" | ochs-24c | ocrs-24c |

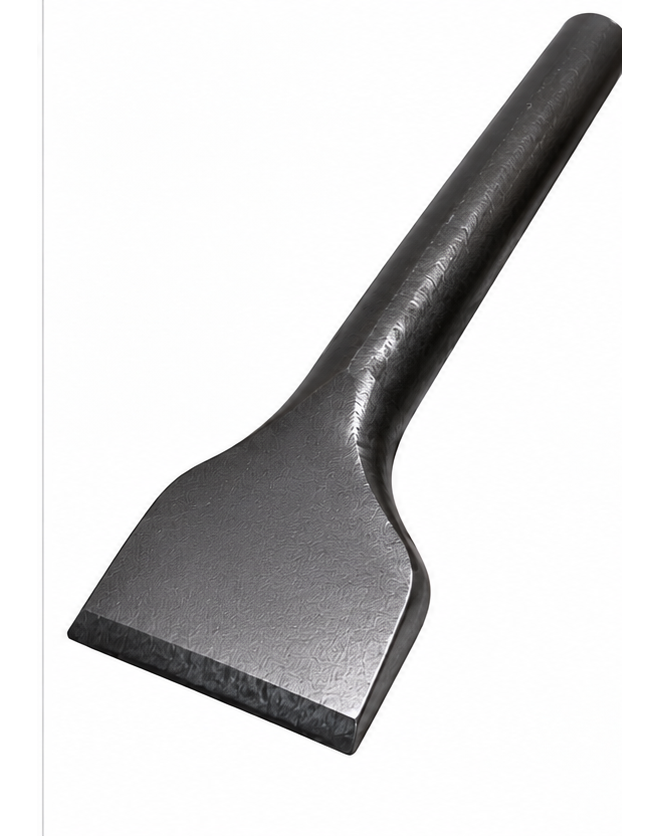

 2in. Wide Blade Chisel | ||
| 12" | ochs-12c2 | ocrs-12c2 |
| 18" | ochs-18c2 | ocrs-18c2 |
| 24" | ochs-24c2 | ocrs-24c2 |

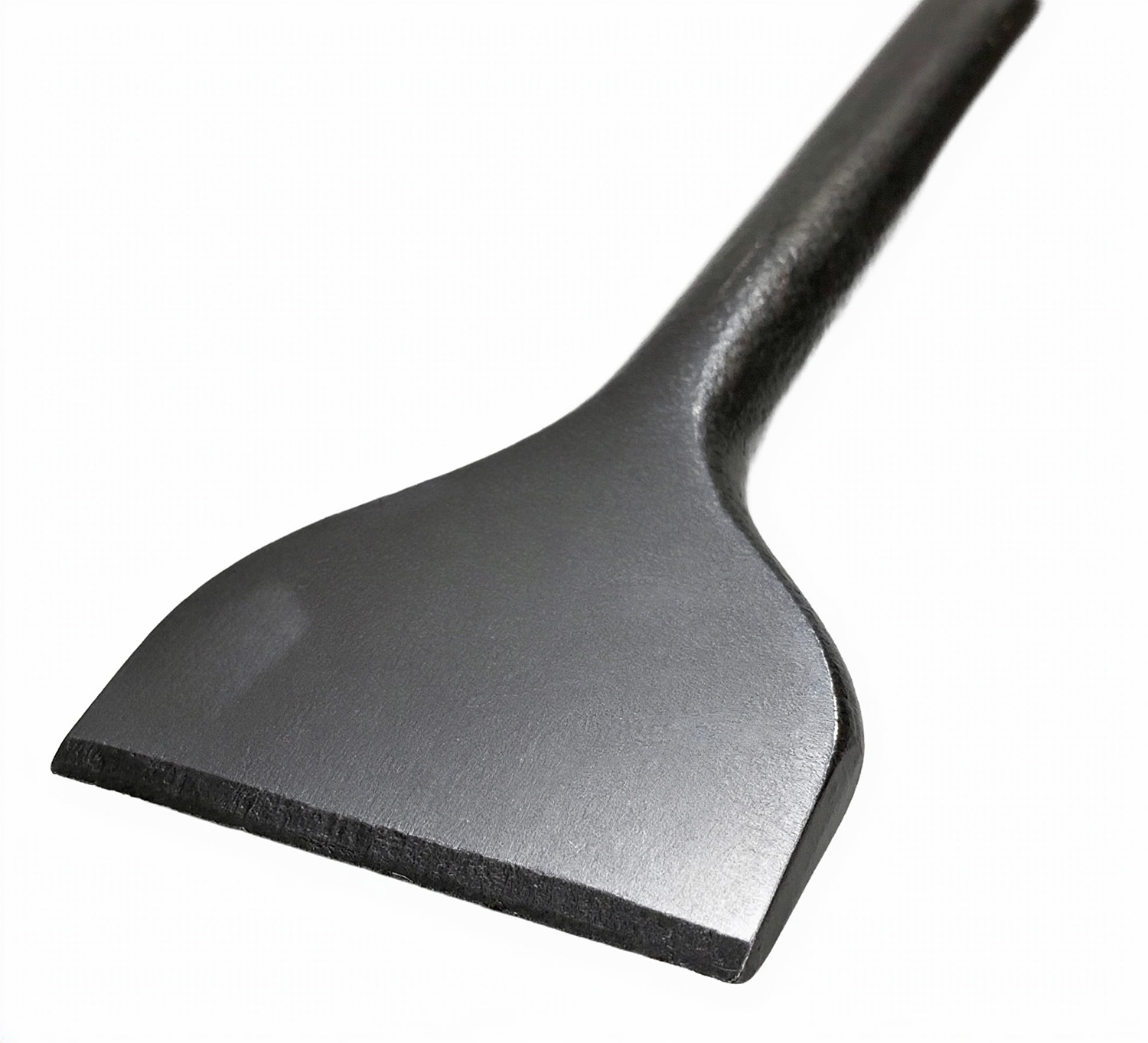

 3in. Wide Blade Chisel | ||
| 12" | ochs-12c3 | ocrs-12c3 |
| 18" | ochs-18c3 | ocrs-18c3 |
| 24" | ochs-24c3 | ocrs-24c3 |

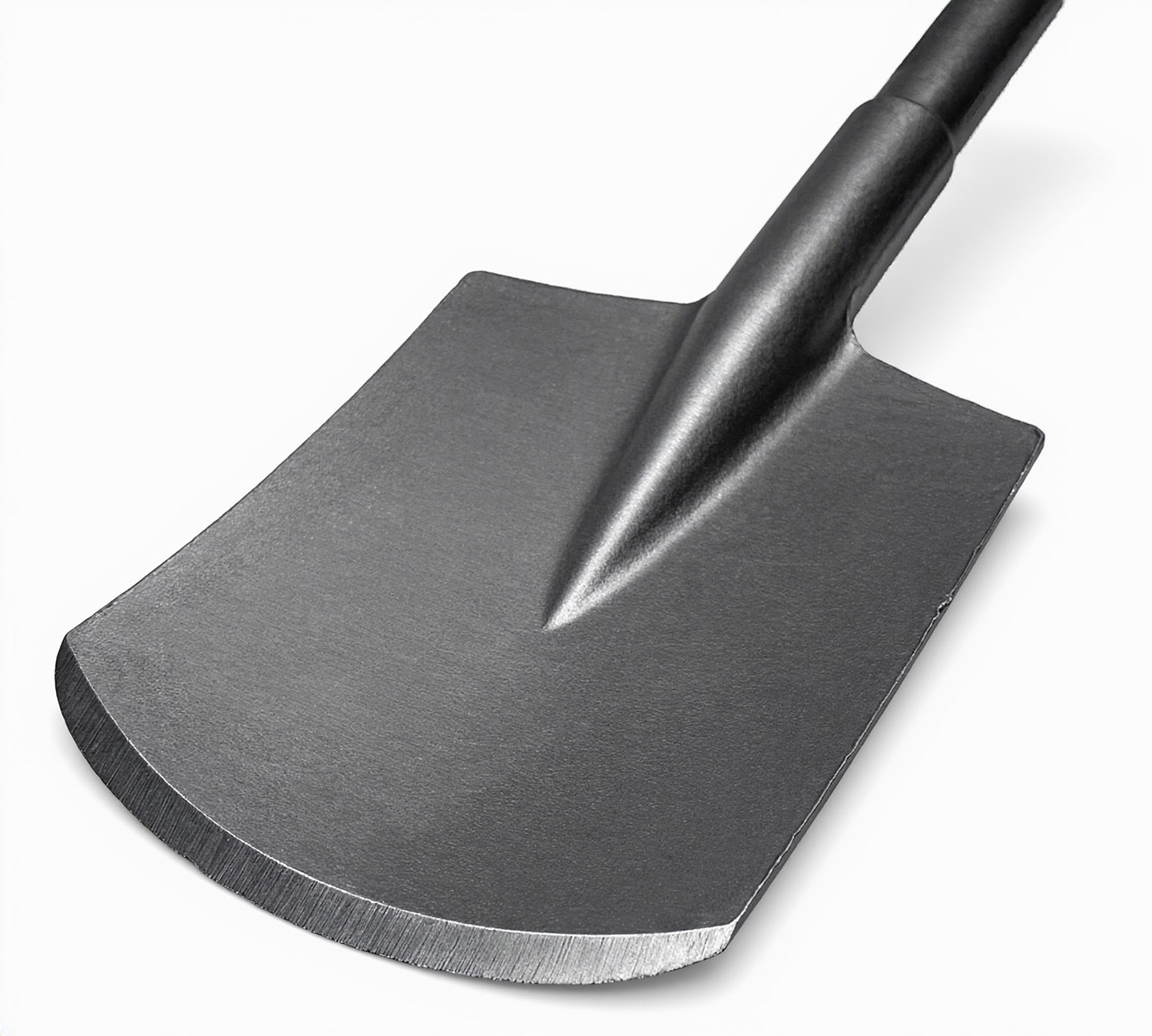

 4-1/2in. Wide Clay Spade | ||
| 10" | ochs-cs | ocrs-cs |

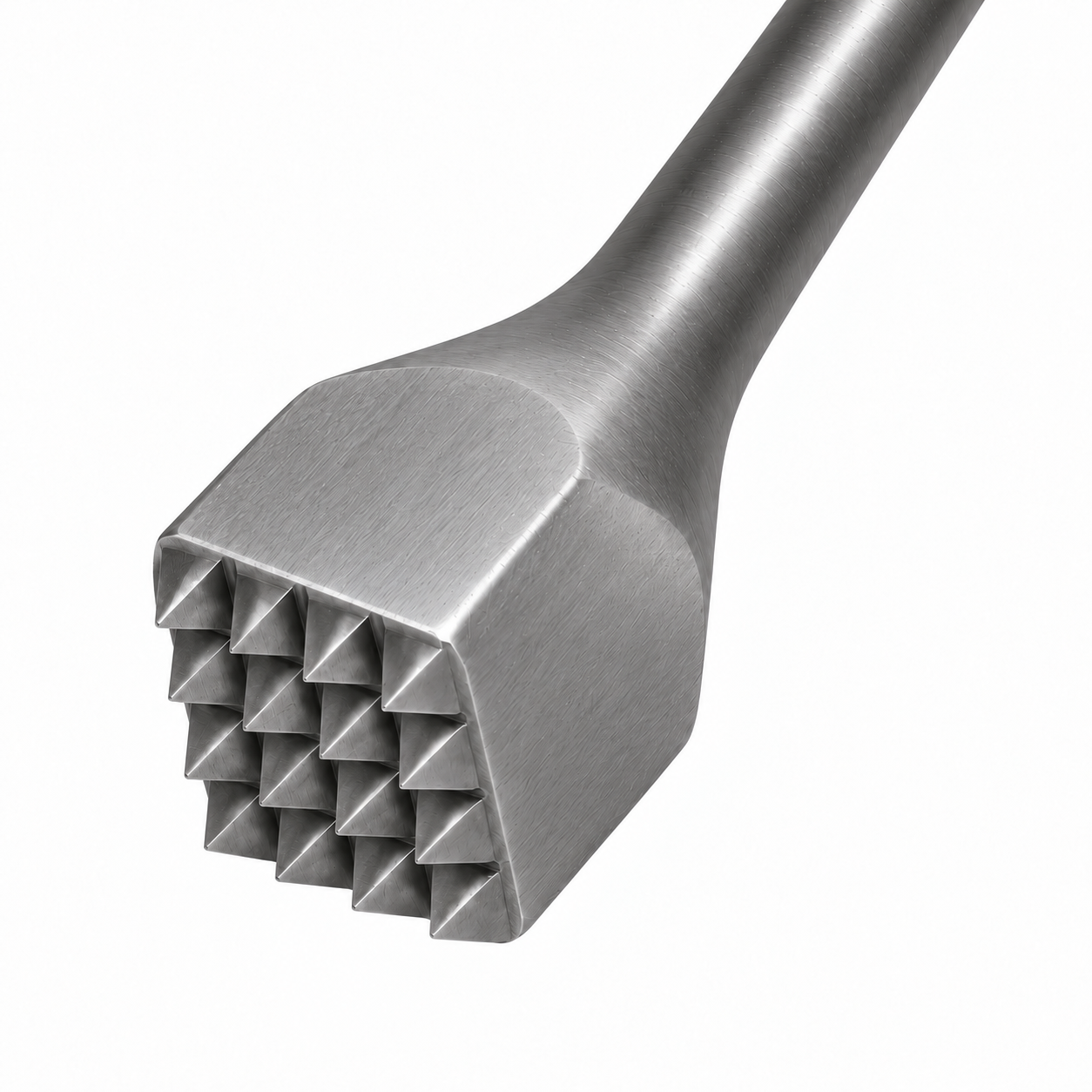

 1 Pc. All-Steel Bushing Tool | ||
| 8" | ochs-bt | ocrs-bt |
Round collar bits
For deluxe quick-change ball retainers.
| Length under collar (in.) |  RCHS.580 Hex |  RCRS.680 Round |
|---|---|---|
| Moil Point | ||
| 12" | rchs-12p | rcrs-12p |
| 18" | rchs-18p | rcrs-18p |
| 24" | rchs-24p | rcrs-24p |
| Narrow Chisel | ||
| 12" | rchs-12c | rcrs-12c |
| 18" | rchs-18c | rcrs-18c |
| 24" | rchs-24c | rcrs-24c |
| 2in. Wide Blade Chisel | ||
| 12" | rchs-12c2 | rcrs-12c2 |
| 18" | rchs-18c2 | rcrs-18c2 |
| 24" | rchs-24c2 | rcrs-24c2 |
| 3in. Wide Blade Chisel | ||
| 12" | rchs-12c3 | rcrs-12c3 |
| 18" | rchs-18c3 | rcrs-18c3 |
| 24" | rchs-24c3 | rcrs-24c3 |
| 4-1/2in. Wide Clay Spade | ||
| 10" | rchs-cs | rcrs-cs |
| 1 Pc. All-Steel Bushing Tool | ||
| 8" | rchs-bt | rcrs-bt |
Longer lengths available for most tools. Call 800-241-9669 for help matching your tool.
